Routing algorithm implemented by python.

This is a report for simulating routing algorithm -“Bellman-ford” using python socket programming.

1. Abstract

The main function of network layer is to send packets from source machine to destination machine locating anywhere in the internet. The mechanism behind the function includes routing in routers: routers must decide the next neighbor to drop these packets, which contains path computing. And the routing algorithms is the key to implement the function. In this project, one of the routing algorithms, Bellman-ford, is simulated by python socket programming. Each .json file represents one router in the network and their distances to each other are maintained by objects in each file. After computing the distance vector, the shortest paths to each other will converge to optimized values which are written in the output .json file. In this report, method to implement Bell-man Ford algorithm via python socket programming is introduced, and testing method along with expected results are demonstrated.

2. Introduction

2.1 Background

Bellman-Ford algorithm, a dynamic computing method, is widely applied in routing algorithms. It is a graph-based searching algorithm that is capable of finding the shortest path between local vertex and the other vertexes in the whole graph connecting to each other. It can decide the shortest path by choosing the next neighbor to drop the packets without knowing the whole layout of the entire network system [1].

The Bellman-Ford algorithm operates over an given diagram, D, containing N nodes along with distance vector Dv between the node and its neighbors. Relaxation equation is the key concept in Bellman-Ford, which works by successively computing Dv by comparing it with other known Dvs held by its neighbors. If the newly computed Dv is smaller than currently hold Dv, update it. After its convergence, the minimum distance to other nodes are found.

Below shows the relaxation equation:

def relax(u, v):
     if local_dict[key] > peer_dict[node_name] + peer_dict[key]:
                    local_dict[key] = peer_dict[node_name] + peer_dict[key]
                    next_hop = peer_node
                    distance = peer_dict[node_name] + peer_dict[key]

Bellman-Ford algorithm is recognized as decentralized algorithm for it computes the least-cost path from source node to other peer nodes in a repeated behavior. In this algorithm, there is no need to maintain the knowledge of the distance vector of the whole network nodes, every node can only get to know the information of its neighbor nodes at the beginning. After iterating through all the neighbors’ information and updating the local distance vector, local node can know the existence of other node in the network, meanwhile, it knows the direction through which neighbor the packet is to be dropped to obtain the least cost path.

2.2 Project Requirement

In this project, python socket programming is applied to implement the algorithm. Each node is represented by an application containing its own neighbor information (IP and port number) and distance vector to its neighbors. These two information are maintained in two different .json files which are respectively nodename_distance.json and nodename_ip.json. Each node can load its own information and communicate with other nodes via UDP socket. After connection, they can exchange their distance vector asynchronously and recompute their local distance vector if there are any shorter distance through its neighbor to any of the other nodes in the graph. After convergence of the local distance vector which means that no nearer path to other nodes are found, each node can output its optimized distance vector to a new json file called nodename_output.json.

2.3 Literature Review and Project Scope

In major routing algorithms, there are majorly two generics of them which are respectively decentralized and centralized algorithms. Centralized models are the routing method in which the whole network information is maintained in the routing table of routers. Every node get to know the global view of the network. On the contrary, decentralized algorithms are the ones that maintain distributed routing database. Each node communicates with other peers through exchanging their own database, and they decide which way to drop packets by judging the currently maintained routing database [2].

Centralized system is easy to protect the client information and server information physically through location virtualization. Also, it is capable of updating information taking the advantage of globally shared comprehensive information. However, centralized system cannot scale up after reaching its maximum capability of carrying out efficient calculation. Usually, a network contains thousands of routers, it is exhausted to record every information of these nodes. Thus, the performance of centralized routing system is constrained by the scale of network system. Also, its bottleneck lies when the traffic summit comes. The router has limited port numbers to which they can make connections form other nodes, as a consequence, when the number of incoming clients surpasses its workload, it suffers from packets loss.

On the other hand, decentralized system can be scaled up to a enormous volume. Each node only have to possess its own neighbor information rather than maintain the whole system information, thus, it has more autonomy to utilize more resources comparing to centralized systems. However, it is difficult to coordinate collective missions through all the nodes, due to independent behavior of each node.

Bell-man Ford algorithm is one of the decentralized algorithms. It is distributed over each node in the network, and the behavior of each node is unique. In this project, Bell-man Ford routing algorithm is simulated by using python socket programming, UDP protocol is applied to carry out communication between each node. Each node has its own neighbor distance vector information and neighbor IP information. Nodes can be started without constraint of time and sequence, finally, their local distance vector can convergent to a optimized value.

3. Methodology

3.1 Proposed functions and ideas

There are 4 functions in this project, the usage of each function is listed below:

Five global variables are used in this application:

3.2 Proposed protocols

In this application, Iterative communication between nodes is required as a consequence of distributed architecture. Once a node is online, it firstly read its own local distance vector and its own neighbor information stored in nodeName_distance.json and nodeName_ip.json. Then, it informs other neighbor that it is online and exchange its distance vector information with neighbors. Meanwhile, it listens to news from neighbors, if there are distance vector information sent from other neighbors, if firstly inspect whether there are nodes local neighbor never maintain, and it adds the foreign nodes in neighbor’s distance vector to its own distance vector. After that, it uses relaxation function to decide whether the local distance vector should be updated. Following that, if updating happens during the comparison with neighbor’s distance vector, it resend its updated distance vector to its neighbors and update the output dict. Finally, if the result converges or time out, which means that there are no any distance updating in the network, the program will quit and write output dict into nodeName_output.json.

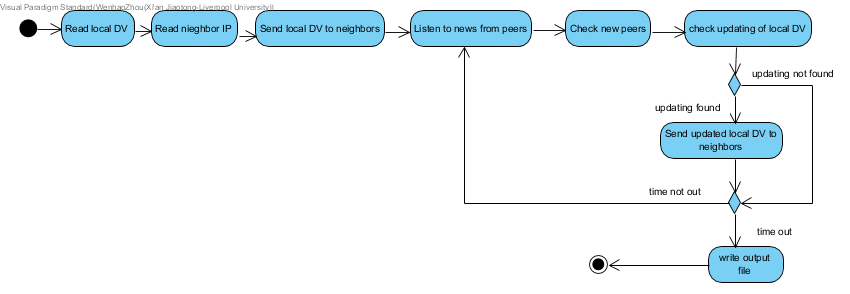

The finite state machine is shown below:

4. Implementation

4.1 Steps of Implementation

1. File reader and information sender:

   To read in .json file, json module is imported to operate this part of function. local_dict is used to maintain DV information to be updated, org_local_dict is used to store original DV information without updating, and neighbor_addr is used to maintain neighbor address information. The format of json data is converted to dict type to perform better operation.

   To send and receive information to other nodes, one UDP socket is initialized at the beginning of the program. To fulfill the function of update news to neighbors, iteration through the neighbor address is required to send local DV sequentially to neighbors. Thus, update_news_to_neighbors(addresses, this_node, dv) takes in three parameters which respectively represent addresses of neighbors, name of this node and distance vector of local node.

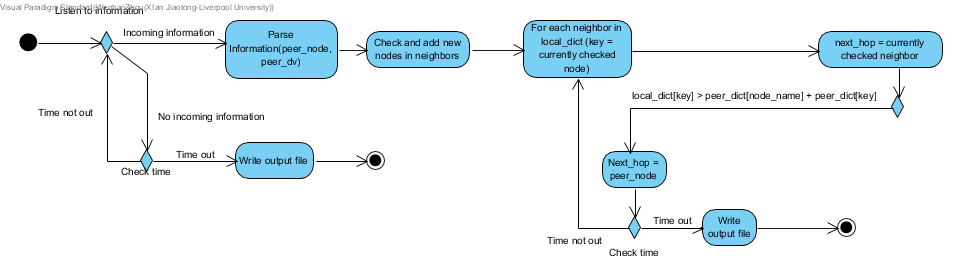

2. Information listener

   To receive updating message coming from other neighbors and refresh local distance vector, a loop with time out constraint is required. During the time out period which is sufficient enough for updating process to complete, local DV refreshing and transmission is implemented.

   The listener tries to receive news from peers, otherwise, it enters exception part where count down is in process. If the count down has surpassed time out limit, output file will be written. If there incomes neighbor’s information, it firstly parse information to get peer node name peer_node and peer distance vector peer_dv. Then, it checks if there are new node in neighbor’s DV that local DV does not maintain, and add the newly found node to local_dict and set the distance from local node to this newly found node to infinite. After that, it iterate through all the neighbor nodes in local_dict to apply relaxation function to check if the distance between this node and currently checked neighbor is greater than the sum of the distance from peer node to this node and the distance from peer node to currently checked neighbor. If the constraint is met, then it updates the next_hop to peer node and update the distance from local node to currently checked neighbor to nearer distance via peer node. Following the updating, it then send update news to neighbors. The above demonstrated process continues until time out, finally, it will write the converged output file. The whole process is demonstrated as image 2.

4.2 Programming skills

1. Distributed application

   As the project required, each node only contain its own neighbor information, the nodes that are not directly connect with the local node cannot be reached at the beginning. Thus, each application is distributed on different hosts which are simulated by different port number assigned to each node’s socket. After rounds of information exchange, every node get to know all the other nodes’ information by its original connected nodes. In the real life, the situation is similar, each router does not know the whole structure of network, instead, they only maintain the forwarding table of its neighbors’. However, they get to know the next hop to drop packets which costs least to its destination.

2. Recursively Information Change

   Each application sends its updated local distance vector to its neighbors if there are any cheaper cost to the destination which is a recursive process rendered in the information listening process. And the convergence of distance vector is indicated by halt of the updating process.

4.3 Difficulties Met and Solutions

5. Testing and Results

1. To test the application with proper environment, Linux-based operating system (Tiny Core) and python 3.6 are required to run the code. To simulate the real word operating condition, a node network containing 4 points is firstly tested. The graph is demonstrated below:

1. one main.py is utilized by simultaneously-run.py python script to run several times and each execution acts like a real router. The content of simultaneously-run.py is shown below:

1. Then, the running environment is prepared by transferring files to virtual machine via Xftp. It is shown below by image 4.

1. After execution command:

   python3 simultaneously_run.py


   main.py will be executed four times with different external parameters which are respectively :

   pyhton3 main.py --node u
   pyhton3 main.py --node v
   pyhton3 main.py --node w
   pyhton3 main.py --node x


   After the convergence of result, each application’s output is generated as nodeName_output.json. The output is demonstrated below:



   Image 5: Output of 4 Nodes

2. After Testing four nodes with reliable performance, a network with nine nodes is tested in the same environment to examine the reliability of the system. Another five points: r, s, t, y, z are introduced into the original graph. The graph of 9 points is shown below:



   Graph 2: Test case2 nine points network

3. Then, work space of nine points is implemented by adding other distance vectors and other IP information. The updated work space is shown below:



   Image 6: Work Space of Nine Points

4. After starting simultaneously-run.py the output is shown below:



   Image 7: Output of Nine Points Network

   As the outputs of each node demonstrated above, it is obvious that all the entities in the output .json files are the same if checking the results through the graph above. Thus, the reliability of the code is guaranteed.

6. Conclusion

In this project, Bellman-Ford algorithm is simulated through python socket programming. Each router is represented by an unique node containing its own neighbor distance vector and neighbor IP information. Apparently, nodes are distributed and decentralized into different application. They can transfer its own information with other nodes recursively and update their own distance vector by using Relaxation Function. After the convergence which means that no shorter distances are found through neighbors, the optimal choices to drop packets to all the other nodes is found.

Reference

[1]. A. Chumbley, K. Moore, E. Ross, J. Khlm. (2012, Dec. 12). Bellman-Ford Algorithm [Online]. Available: https://brilliant.org/wiki/bellman-ford-algorithm/#:~:text=The%20Bellman-Ford%20algorithm%20is%20a%20graph%20search%20algorithm,be%20used%20on%20both%20weighted%20and%20unweighted%20graphs

[2]. Indika. (2011, June. 6). Difference Between Centralized Routing and Distributed Routing [Online]. Available: https://www.differencebetween.com/difference-between-centralized-routing-and-vs-distributed-routing/

The codes are shown below:

• main.py:

# -*- coding = utf-8 -*-
# @Time : 2021-01-03 18:30
# @Author : Danny
# @File : u_main.py
# @Software: PyCharm
import argparse
import json
import time
from socket import *

local_dict = {}
org_local_dict = {}
node_name = ''
neighbour_addr = []
output_dict = {}


def _argparse():
    # print('parsing args...')
    parser = argparse.ArgumentParser()
    parser.add_argument("--node", "-node_name", default='', help="node name")
    arg = parser.parse_args()
    return arg


def listen_to_news_from_neighbours():
    global node_name
    global local_dict
    global org_local_dict
    global neighbour_addr
    global output_dict
    start_time = time.time()
    print(node_name + ' starts listening distance vector from peer nodes...')
    while True:
        try:
            peer_info_b, peer_addr = localInfo_socket.recvfrom(10240)
            peer_node = peer_info_b[:1].decode()
            peer_dv = peer_info_b[1:].decode()
            # print(node_name + ' recieve information from neighbour: ' + peer_node + ', peer_addr: ' + str(peer_addr))
            # print('peer distance vector is: ' + peer_dv)
            peer_dict = eval(peer_dv)

            # If there are keys in the neighbour that local dict does not have
            # add them, and update the distance to infinity
            for neighbour_key in peer_dict:
                if not neighbour_key in local_dict.keys() and neighbour_key != node_name:
                    local_dict[neighbour_key] = float('inf')

            # Recompute distance vector, if the distance from peer to location is smaller, refresh the distance vector
            for key in dict(local_dict).keys():
                next_hop = key
                distance = local_dict[key]
                distance1 = local_dict[key]

                # If currently checked key is the same as peer_node name, then update the distance to 0
                if key == peer_node:
                    peer_dict[key] = 0
                # If the currently checked key is not in the dictionary of peer's, update the value to infinite
                if not key in peer_dict.keys():
                    peer_dict[key] = float('inf')

                # If there find nearer distance through the peer_node, update the next_hop to peer_node
                if local_dict[key] > peer_dict[node_name] + peer_dict[key] and peer_node in org_local_dict.keys():
                    local_dict[key] = peer_dict[node_name] + peer_dict[key]
                    next_hop = peer_node
                    distance1 = peer_dict[node_name] + peer_dict[key]
                    update_news_to_neighbours(neighbour_addr, node_name, local_dict)

                # If the distance and next_hop both changed, update the output distance vector
                if distance != distance1:
                    output_dict.update({key: {"distance": local_dict[key], "next_hop": next_hop}})
                end_time = time.time()
                print(node_name + ": " + str(output_dict))

                # If there are no more updates in the local dict and the result converges, write the final jason file
                if end_time - start_time > 20:
                    with open(node_name + '_output.json', 'w+') as output:
                        output.write(json.dumps(output_dict))
        except:
            time.sleep(1)
            print('no peers are online')
            end_time = time.time()
            #
            if end_time - start_time > 20:
                with open(node_name + '_output.json', 'w+') as output:
                    output.write(json.dumps(output_dict))
                print("Time out, program exits.")
                break


def update_news_to_neighbours(addresses, this_node, dv):
    # print('Start sending local information to neighbors...')
    for addr in addresses:
        localInfo_socket.sendto(this_node.encode() + str(dv).encode(), addr)


def main():
    global local_dict
    global org_local_dict
    global node_name
    global neighbour_addr
    global output_dict
    node_name = _argparse().node

    # get local distance vector information
    with open(node_name + '_distance.json', 'r') as f:
        local_dict = json.load(f)
    # print('local_dict is: ' + str(local_dict))

    with open(node_name + '_distance.json', 'r') as f:
        org_local_dict = json.load(f)

    # get ip address information
    with open(node_name + '_ip.json', 'r') as f:
        ip_dict = json.load(f)
    # print('ips of neighbour nodes are: ' + str(ip_dict))

    localInfo_socket.bind(tuple(ip_dict[node_name]))  # bind socket to local port

    # get neighbour addresses
    for neighbour in ip_dict.keys():
        address = tuple(ip_dict[neighbour])
        if address != tuple(ip_dict[node_name]):
            neighbour_addr.append(address)
    # print('neighbour addresses are: ' + str(neighbour_addr))

    # Initialize the output dict
    for key in local_dict:
        output_dict.update({key: {"distance": local_dict[key], "next_hop": key}})
    update_news_to_neighbours(neighbour_addr, node_name, local_dict)
    listen_to_news_from_neighbours()


if __name__ == '__main__':
    localInfo_socket = socket(AF_INET, SOCK_DGRAM)
    localInfo_socket.settimeout(1)
    main()

• simultaneously_run.py:

# -*- coding = utf-8 -*-
# @Time : 2021-01-10 20:42
# @Author : Danny
# @File : simultaneous_run.py
# @Software: PyCharm
import os
import threading


def run_file(file):
    os.system("python " + file)


if __name__ == '__main__':
    files = ["./u_main.py", "./v_main.py", "./w_main.py", "./x_main.py", "./y_main.py", "./z_main.py", "r_main.py",
             "s_main.py", "t_main.py"]
    # files = ["./w_main.py", "./x_main.py"]
    # files = ["./w_main.py", "./u_main.py"]
    # files = ["./u_main.py", "./v_main.py"]
    # files = ["u_main.py", "x_main.py"]
    # files = ["v_main.py", "x_main.py"]
    for file in files:
        bellman = threading.Thread(target=run_file, args=(file,))
        bellman.start()
